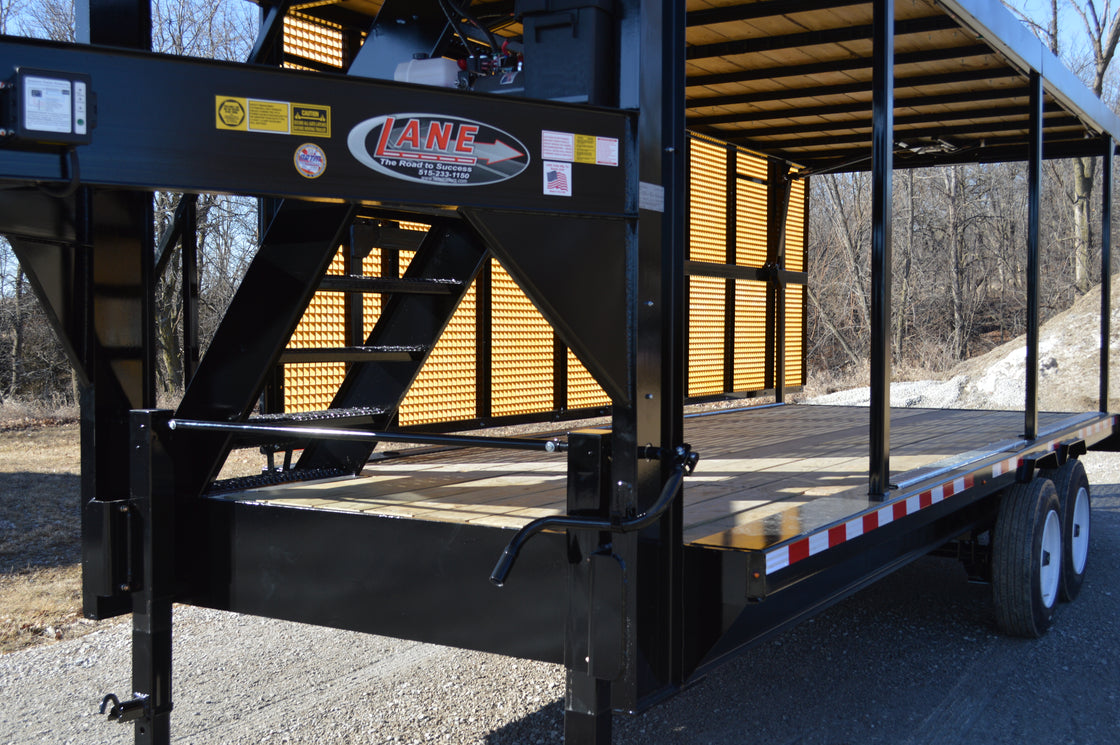

LAD 2424 Spray Drone Trailer

The LAD 2424 Spray Drone Trailer is a heavy-duty dual deck platform engineered for large scale agricultural drone operations. Built on a 25,900 lb. GVWR foundation with tandem 12,000 lb. axles, this trailer delivers the structural strength and capacity required for high production field work.

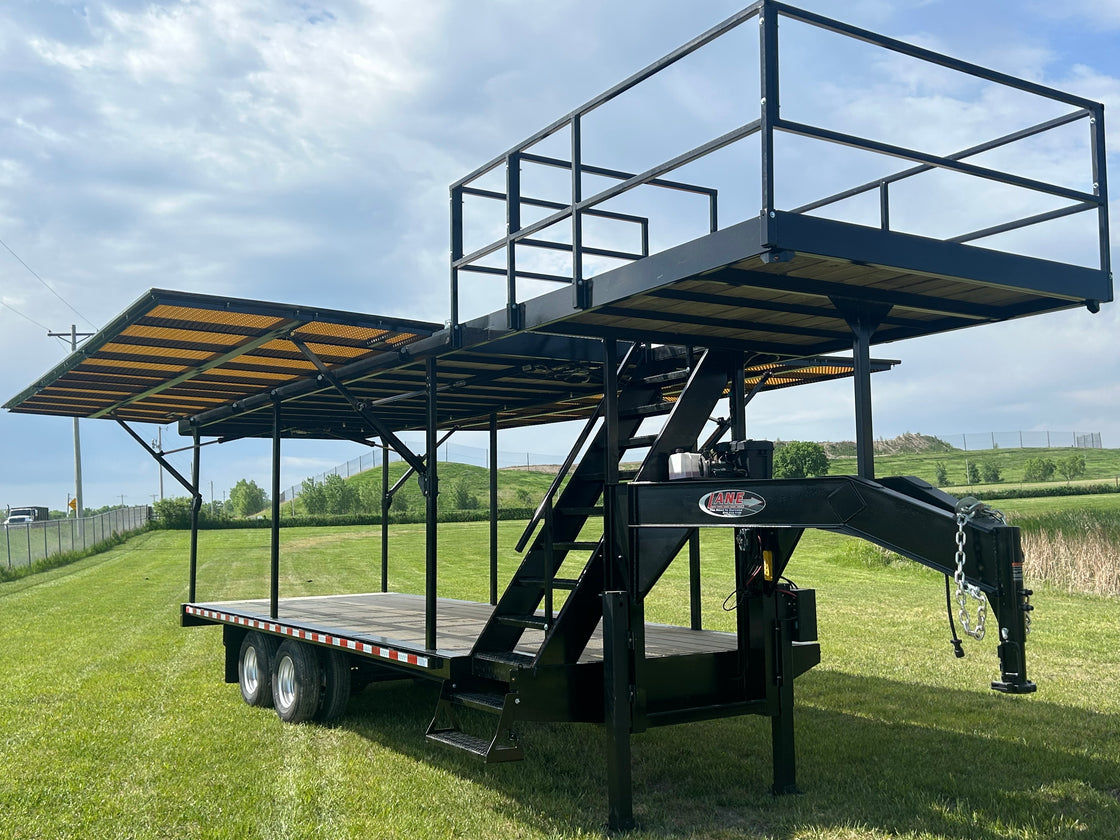

The 24-foot lower deck and extended upper deck layout provide dedicated space for drone staging, landing, and equipment organization. The elevated platform enhances operator visibility and creates a controlled launch environment that supports consistent takeoffs and landings in varying terrain conditions.

Constructed with a 10 inch I beam main frame, 3-inch channel cross members, and a reinforced gooseneck tongue, the LAD 2424 is built to support generators, charging systems, liquid handling equipment, and operational accessories without compromise. Treated kiln dried pine decking provides durability and dependable traction in demanding agricultural environments.

Electric brakes, heavy duty running gear, conduit enclosed wiring, and a full LED lighting package ensure reliable road performance and safe transport between job sites. Integrated E track tie downs on both decks allow equipment to be secured during transport and operation.

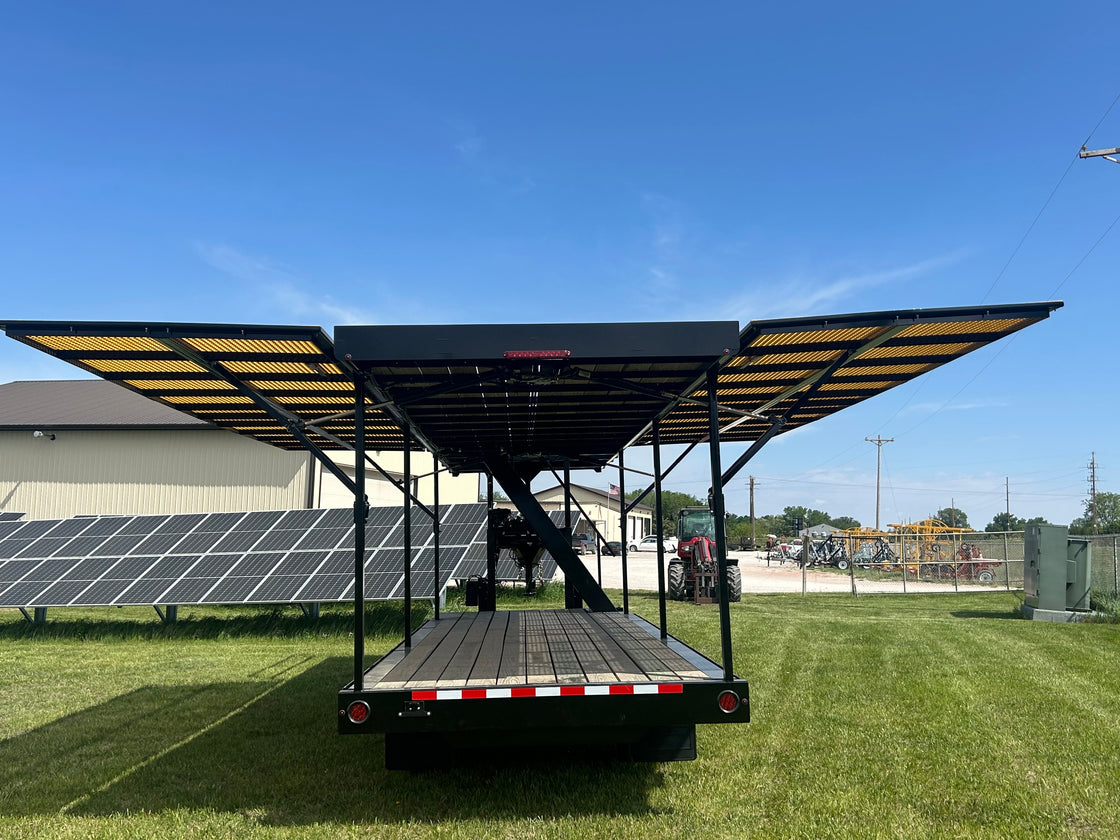

Optional hydraulic expandable wings are available to increase landing and takeoff area when additional staging space is required. Fiber Grate Wing upgrades are also available, offering corrosion resistance and improved traction while reducing maintenance compared to traditional steel mesh systems.

The LAD 2424 delivers the space, capacity, and structural integrity required for professional agricultural drone operators who demand consistent performance in the field.

Turnkey configurations are available. Contact one of our representatives to build a fully integrated spray drone trailer package tailored to your operation.

Quick Specifications

Model: LAD 2424G
GVWR: 25,900 lbs.
Overall Length: Approx. 35 ft
Overall Width: 102 in
Empty Weight: 9,040 lbs.

Running Gear

• Tandem 12,000 lb. Axles
• Electric Brakes
• ST235/80R16 Load Range E Tires
• 16 in Silver Mod Dual Wheels

Frame

• 10 in I Beam Main Frame
• 3 in Channel Cross Members
• 10 in I Beam Gooseneck Tongue

Lower Deck

• 24 ft long x 97 in Wide
• 2 x 8 Treated Kiln Dried Pine

Top Deck

• 33 ft 6 in x 92 in
• 24 ft Center Landing x 92 in Wide
• 2 x 8 Treated Kiln Dried Pine
• 2 x 2 x 3/16 in Angle Cross Members

Electrical

• 7 Way Molded Plug
• Conduit Enclosed Wiring with Junction Boxes
• Soldered and Shrink-Wrapped Connections
• Standard LED Light Package

Safety and Accessories

• Rated Safety Chains
• Breakaway System with Battery and Switch
• Reflective Tape and Warning Decals
• Dual 12K Side Wind Jacks with Drop Legs
• E Track Tie Downs on Top and Bottom Deck
