LAD 2016 Spray Drone Trailer

The LAD 2016 Spray Drone Trailer is built for operators who want mobility, efficiency, and clean workflow in a compact dual deck configuration. With a 16,000 lb. GVWR foundation, it delivers dependable strength without excess bulk, making it an ideal solution for agile agricultural drone operations.

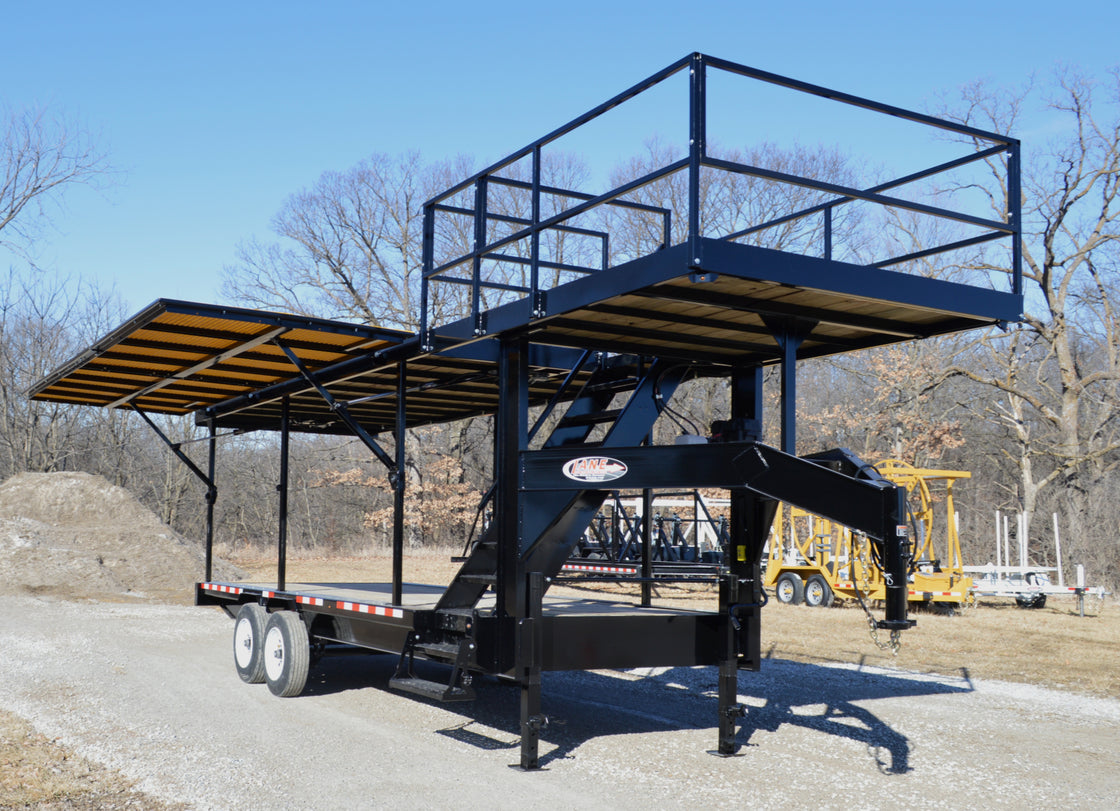

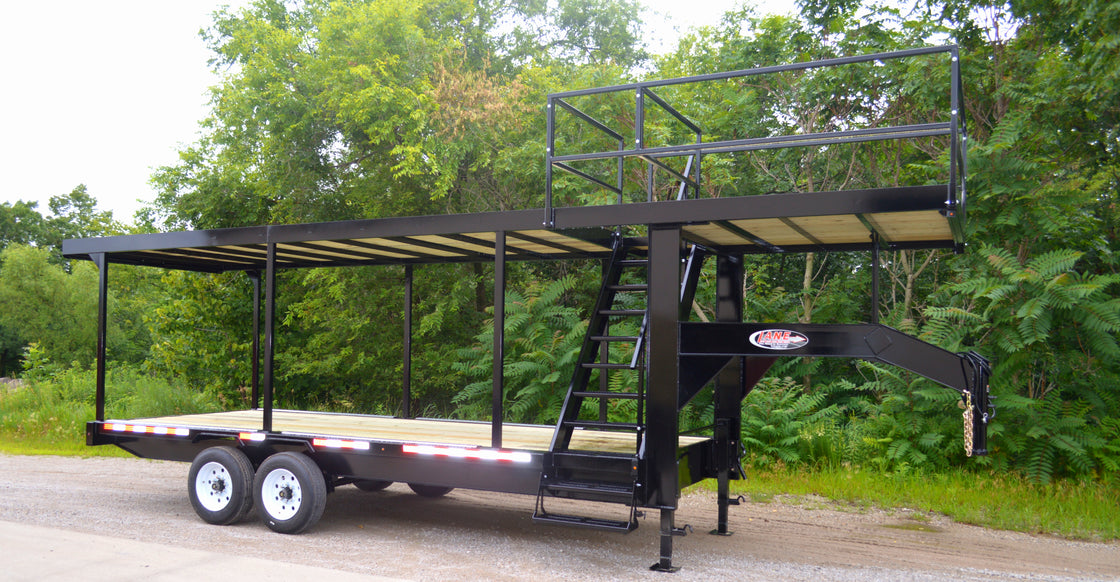

The dual deck layout creates clear separation between staging and support equipment, allowing crews to maintain an organized workflow from takeoff to landing. The elevated upper platform improves visibility and provides a controlled launch environment that supports consistent deployment in uneven terrain.

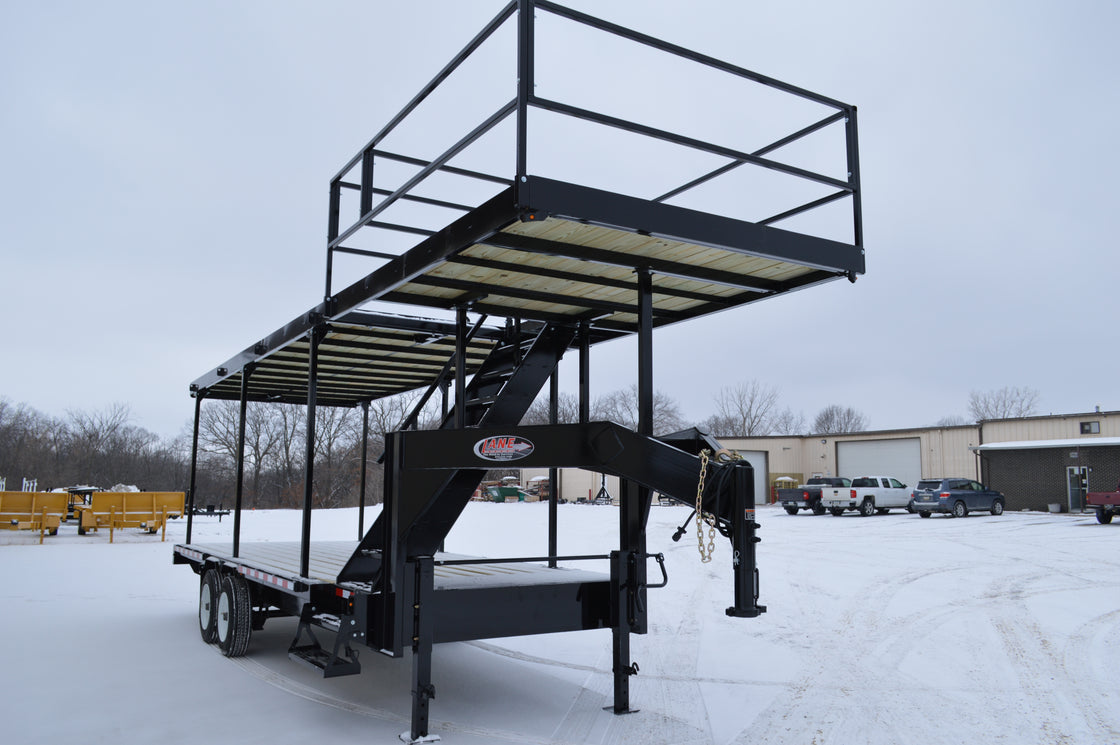

A built-in staircase allows safe and confident access to the upper deck during active operations. The expandable lift platform increases flexibility in changing field conditions, giving operators a stable surface for deployment and retrieval.

Constructed with reinforced framing and commercial grade components, the LAD 2016 is designed to handle charging systems, generators, and essential support equipment while maintaining reliable road performance.

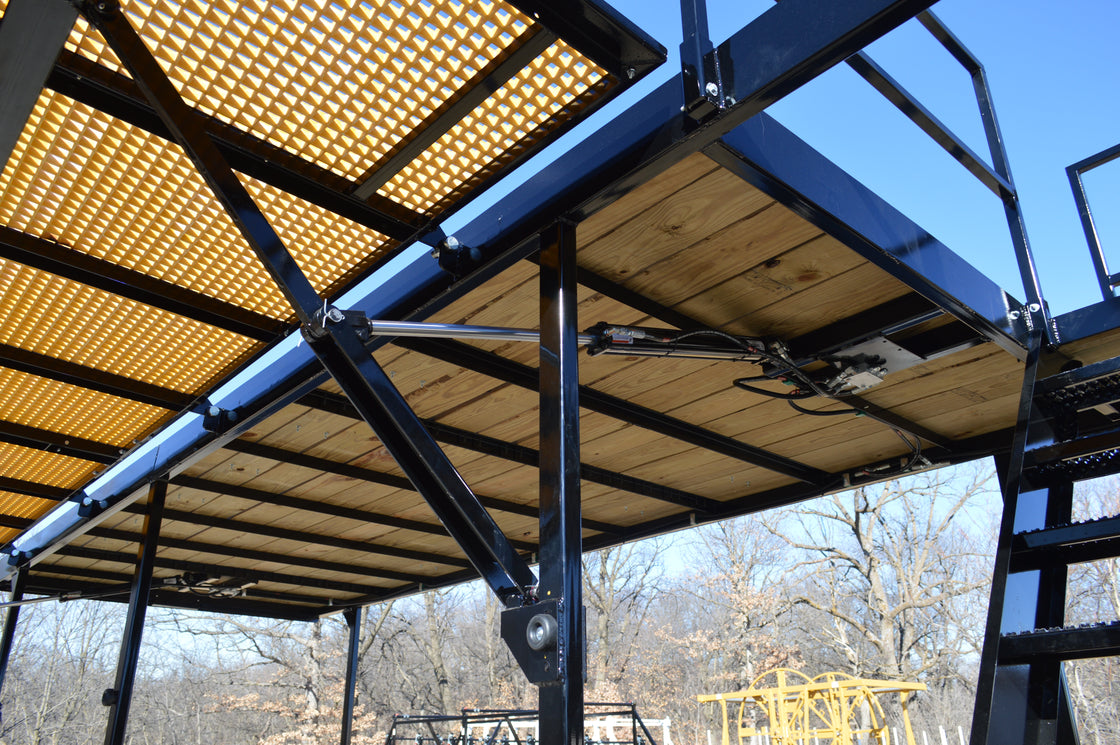

Optional hydraulic expandable wings and Fiber Grate Wing upgrades are available for operators who require additional landing space and long-term durability.

The LAD 2016 is designed for streamlined operations, balanced capacity, and dependable daily performance in the field.

Turnkey configurations are available. Contact one of our representatives to build a fully integrated spray drone trailer package tailored to your operation.

Quick Specifications

Model: LAD 2016
GVWR: 16,000 lbs.
Overall Length: Approx. 29 ft 6 in
Overall Width: 102 in
Empty Weight: 8,000 lbs.

Running Gear

• 16,000 lb. Axle Configuration
• Electric Brakes
• ST215/75R17.5 Load Range H Tires
• 17.5 x 6.75 8 Bolt White Mod Wheels

Frame

• 10 in Junior I Beam Main Frame
• 3 in Channel Cross Members
• 10 in Junior I Beam Gooseneck Tongue

Lower Deck

• 20 ft long x 97 in Wide
• 2 x 8 Treated Kiln Dried Pine

Top Deck

• 29 ft 6 in x 92 in
• 20 ft Center Landing x 92 in Wide
• 2 x 8 Treated Kiln Dried Pine
• 2 x 2 x 3/16 in Angle Cross Members

Electrical

• 7 Way Molded Plug
• Conduit Enclosed Wiring with Junction Boxes
• Soldered and Shrink-Wrapped Connections
• Standard LED Light Package

Safety and Accessories

• Rated Safety Chains
• Breakaway System with Battery and Switch
• Reflective Tape and Warning Decals
• Dual 12K Side Wind Jacks with Drop Legs
• E Track Tie Downs on Top and Bottom Deck
