LAD 2420 Spray Drone Trailer

he LAD 2420 Spray Drone Trailer is designed for operators scaling beyond entry level production and moving into structured, high acreage field operations. With a 20,000 lb. GVWR and a full dual deck platform, it offers expanded capacity while maintaining operational efficiency.

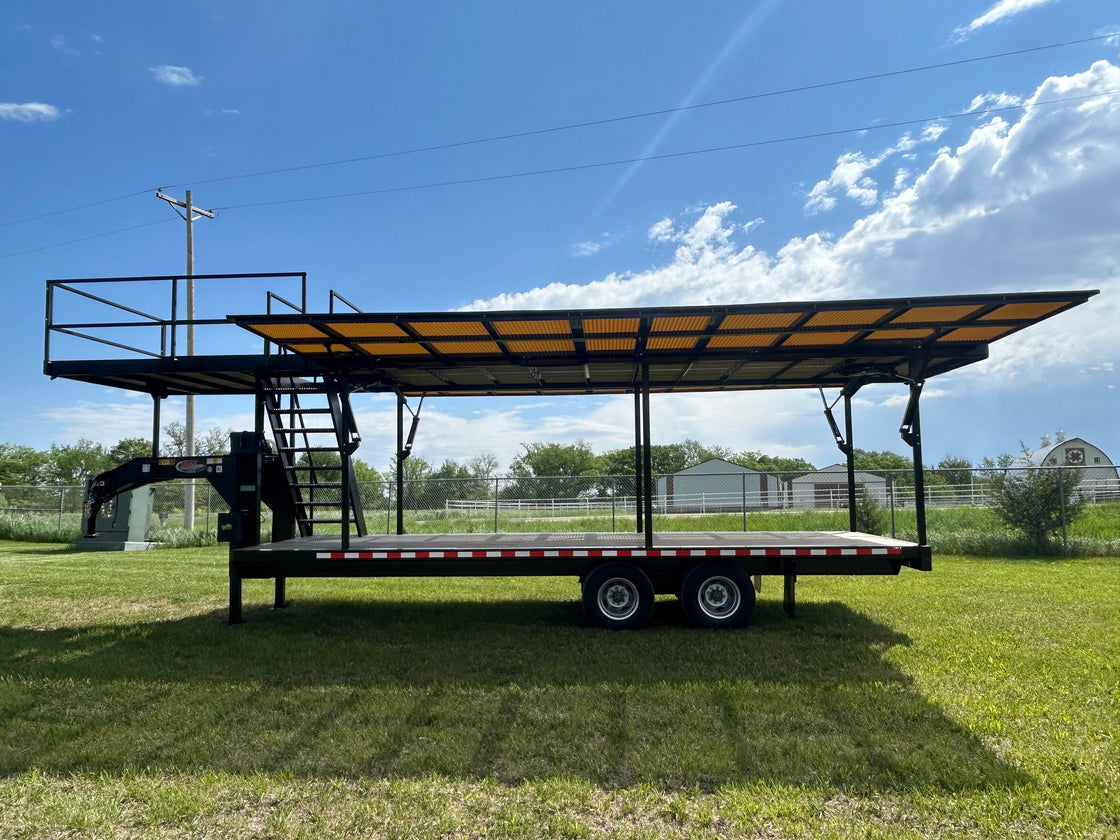

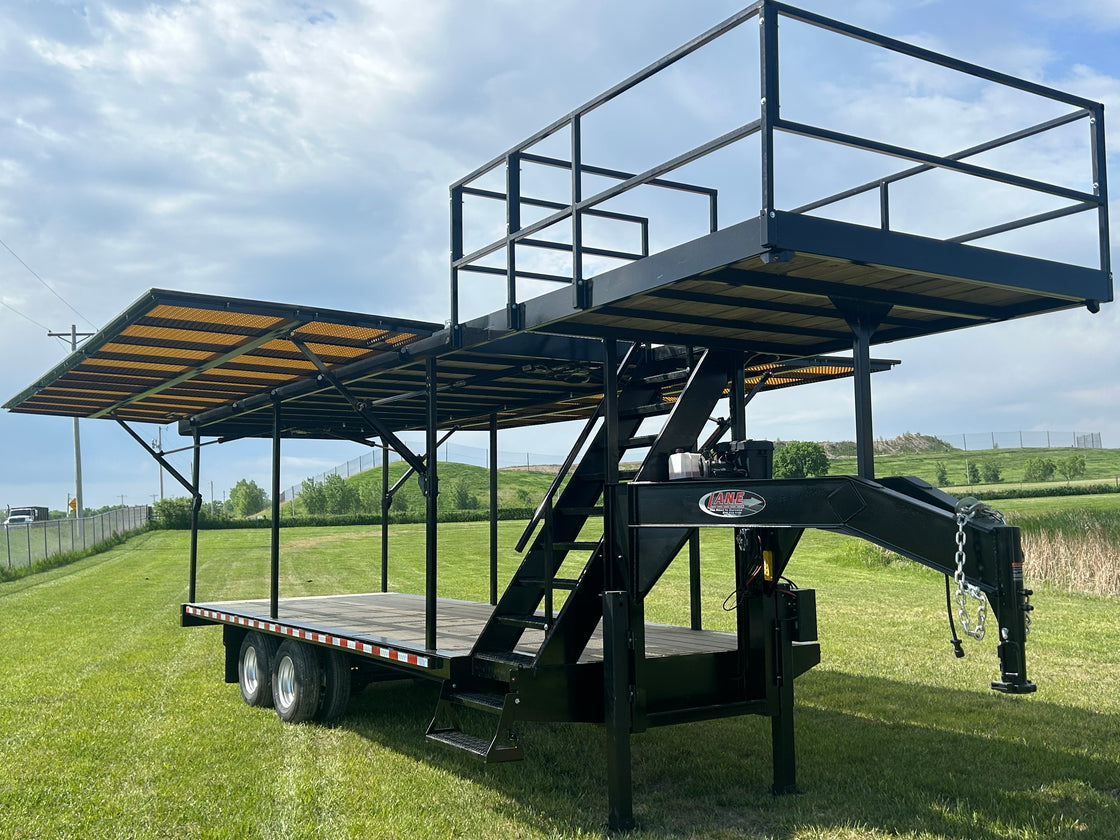

The 24-foot lower deck and extended upper platform create dedicated zones for landing, staging, and equipment management. This separation improves turnaround time between flights and keeps operations organized during high output spraying days.

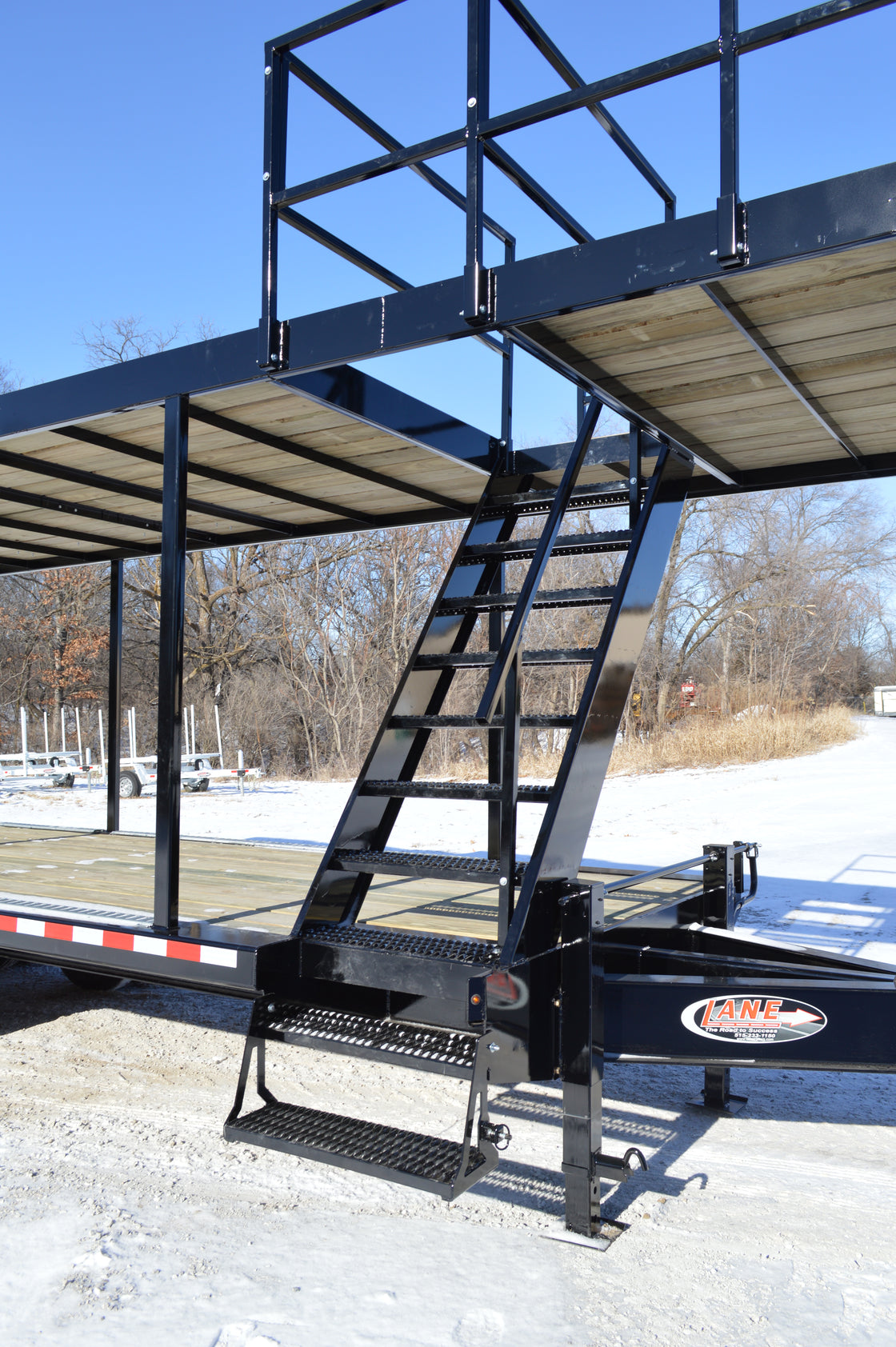

The elevated deployment area enhances line of sight and supports smoother takeoffs and landings across varying terrain conditions. Its expandable lift platform provides adaptability in the field, helping crews maintain consistency even in challenging environments.

Built with a reinforced I beam frame, heavy duty cross members, and commercial grade running gear, the LAD 2420 is engineered to support generators, charging systems, liquid handling equipment, and operational accessories without compromise.

Optional hydraulic expandable wings increase available landing area when production demands more space. Fiber Grate Wing upgrades provide corrosion resistance and improved traction for long term reliability.

The LAD 2420 delivers expanded working space, improved organization, and scalable capacity for serious agricultural drone operators.

Turnkey configurations are available. Contact one of our representatives to build a fully integrated spray drone trailer package tailored to your operation.

Quick Specifications

Model: LAD 2420G
GVWR: 20,000 lbs.
Overall Length: Approx. 33 ft 6 in
Overall Width: 102 in
Empty Weight: 9,500 lbs.

Running Gear

• Tandem 10,000 lb. Axles
• Electric Brakes
• ST235/80R16 Load Range E Tires
• 16 in Silver Mod Dual Wheels

Frame

• 10 in I Beam Main Frame
• 3 in Channel Cross Members
• 10 in I Beam Gooseneck Tongue

Lower Deck

• 24 ft long x 97 in Wide
• 2 x 8 Treated Kiln Dried Pine

Top Deck

• 33 ft 6 in x 92 in
• 24 ft Center Landing x 92 in Wide
• 2 x 8 Treated Kiln Dried Pine
• 2 x 2 x 3/16 in Angle Cross Members

Electrical

• 7 Way Molded Plug
• Conduit Enclosed Wiring with Junction Boxes
• Soldered and Shrink-Wrapped Connections
• Standard LED Light Package

Safety and Accessories

• Rated Safety Chains
• Breakaway System with Battery and Switch
• Reflective Tape and Warning Decals
• Dual 12K Side Wind Jacks with Drop Legs
• E Track Tie Downs on Top and Bottom Deck
